Motogadget Analog Speedometer - Motoscope Tiny

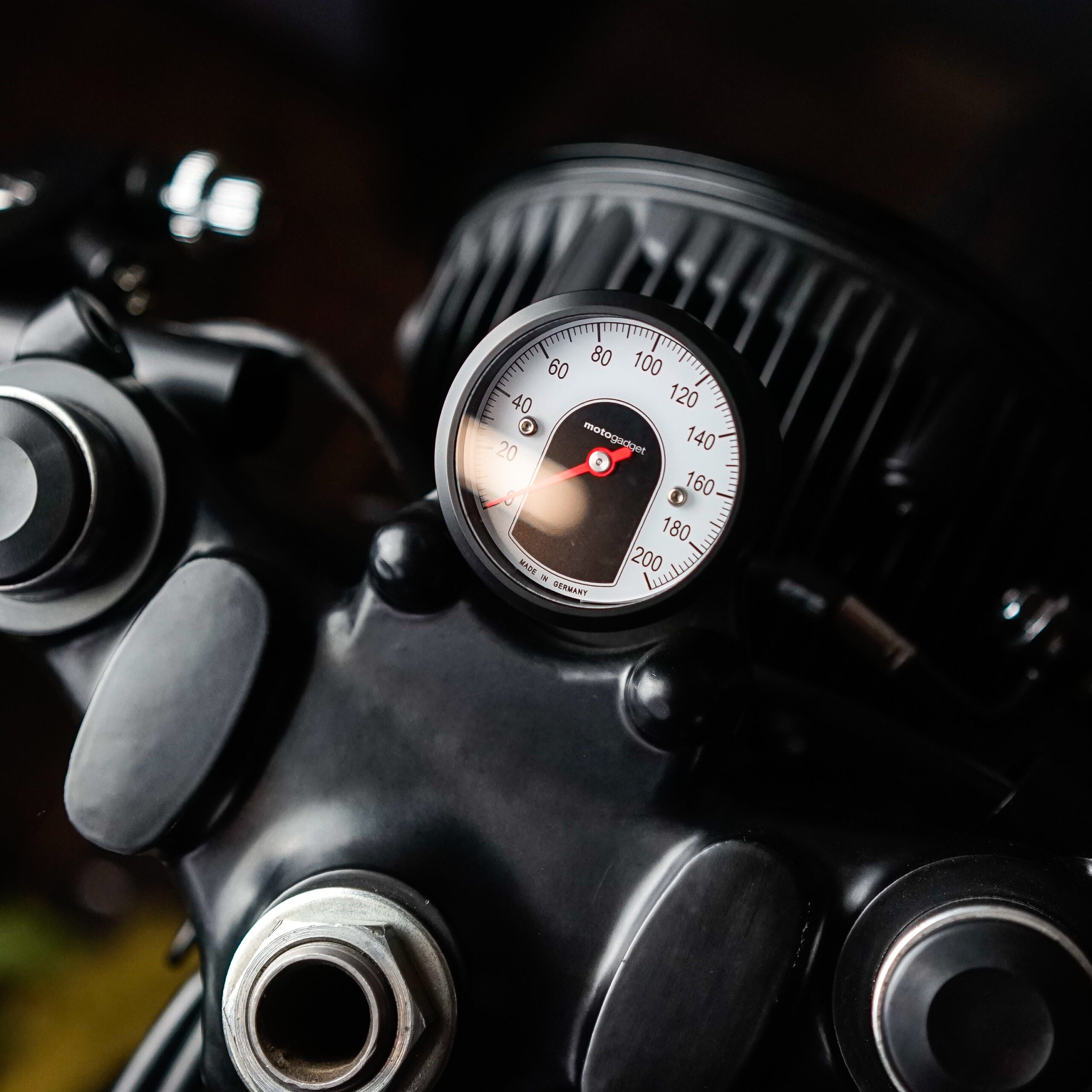

The motoscope tiny with ABE is a very small, analogue speedometer in 49mm format.

It measures the speed digitally and displays it precisely using a stepper motor and pointer. The installation diameter of 49 mm and the installation depth of just 24 mm open up a wide range of installation options. Sophisticated technology makes the classic look possible without compromise. The dial has no display cutout or LCD and has a convincing classic style. The perfect solution for purists and minimalists.

The housing:
The high-quality aluminum housing is turned from solid material and its surface is black anodized. The screw ring is also available black anodized or highly polished. The housing is 100% waterproof and insensitive to vibrations.

Dial and display:

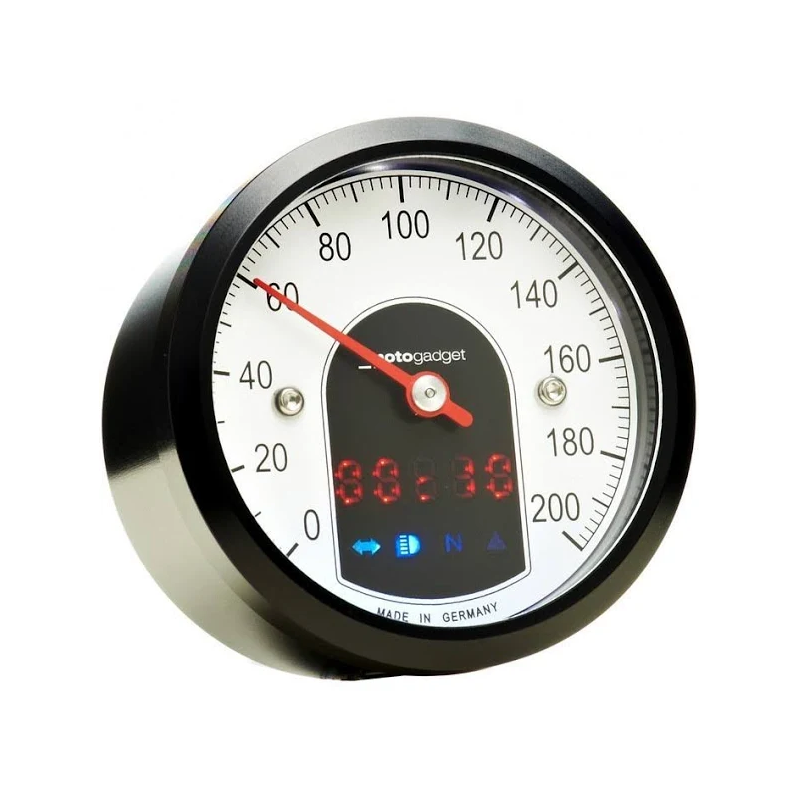

The analogue dial in black and white contrast is indirectly illuminated by white LEDs. Behind the black part of the dial is an innovative LED display that only lights up through the dial when the device is in use and is not visible when it is switched off! To ensure optimal readability in the dark, sun and twilight, the brightness of the LEDs is automatically adjusted. If the 200 km/h on the analogue scale is exceeded, the speed is automatically shown on the LED display. The maximum speed is also stored. The 4 control lights (blue, red, 2 x green) are also integrated into the dial. These also only become visible when the device is in use.

Service:
The menu button supplied or the headlight flasher button on the handlebars, for example, can be used to switch between the LED display's displays. The standard display on the display is the time. If required, the values ​​for total kilometers, daily kilometers, on-board voltage, etc. can be displayed by briefly pressing the button. All functions, such as resetting daily kilometers, etc., are easy to operate using the button. Presets or saved values ​​are of course saved even without a power supply.

Cultivation:
The motoscope tiny is easy to attach using the two M3 threaded bushings on the back. We offer various brackets for mounting.

Connection and sensors:
The detailed installation and operating instructions (see under Downloads) make it possible to connect the instrument even for users who have previously stayed away from vehicle electrics. The included stainless steel speedometer sensor is very small (M5/23 mm) and easy to hide. With the 1.5 m long connection cable, it can be easily attached to the front or rear wheel. This means that vehicles with an original mechanical speedometer drive can also be easily converted. The motoscope tiny is compatible with many original speedometer sensors (reed contact and proximity sensors) from vehicle manufacturers. In this case, only connections are made and the mechanical installation of a sensor becomes completely unnecessary. An intelligent 'teach function' enables the speedometer to be easily calibrated - even on vehicles with sensors on the gearbox such as Harley-Davidson (TM).

Technical data and functions
Installation diameter: 49 mm
Weight: approx. 96 g
Fastening: 2 x M3 threaded bushing
Current consumption during operation: approx. 200 mA (depending on load)
Operating voltage: 9 V - 15 V
Operating temperature: -20° +80°C
Speedometer analogue (pointer) = 0 – 200 km/h or mph
Speedometer numeric (LED display) = 200 – 999 km/h or mph
maximum speed = 0 – 999 km/h or mph
On-board voltage = 9 – 15 V
Time = 00:00 – 23:59
Trip odometer = 0 – 999.9 km or mi
Total kilometers (adjustable) = up to 99 999 km or mi
Indicator lights = indicator, high beam, neutral, warning light

Scope of delivery:
Instrument with approx. 75 cm connection cable
Mini button
2 flying fuses
9 Cable end connectors
Speedometer sensor (M5 x 0.5 fine thread, stainless steel, IP 68) with 150 cm connection cable
2 strong neodymium mini magnets
2 fastening screws M3 with washer
2 diodes for combining the indicators
Detailed installation and operating instructions.
